A heat pump hot water system in Preston can use either an integrated or split configuration. Integrated systems combine the heat pump components and storage tank in one unit, while split system heat pumps separate them. The right option depends on your available space, installation location, noise considerations, existing hot water setup, household demand, installation requirements, upfront budget and ongoing running costs.
A heat pump hot water system in Preston runs on the same principle as a reverse-cycle air conditioner: it pulls heat from the surrounding air and transfers it into your water tank, rather than generating heat directly with an element or gas burner.
From there, the choice comes down to integrated versus split configurations, and which one suits your property depends on more than upfront cost alone, with ongoing running costs also worth considering.
Expert Plumbing & Gas Services installs both configurations across Preston and works through that decision with homeowners before recommending either one.
Integrated vs Split Heat Pump Systems
The two configurations differ mainly in where the compressor sits relative to the tank, and that placement affects noise, space and servicing access.
| Consideration | Integrated Heat Pump | Split System Heat Pump |
| Configuration | Heat pump components and storage tank combined in one integrated unit | Heat pump unit and storage tank are separate |
| Space | Requires suitable space for one combined outdoor unit | Offers more flexibility in positioning separate components |
| Noise | Operating sound is concentrated around the combined unit | Heat pump unit may be positioned further from living or sleeping areas |
| Installation | Can be more straightforward where there is a suitable location | May involve additional positioning and connection requirements |
| Efficiency | Varies between models | Some split system heat pumps can offer higher energy efficiency, depending on the model and installation |
| Best suited to | Properties with a suitable location for the combined unit | Properties where flexible positioning, noise or space are important considerations |
Integrated Heat Pump Systems

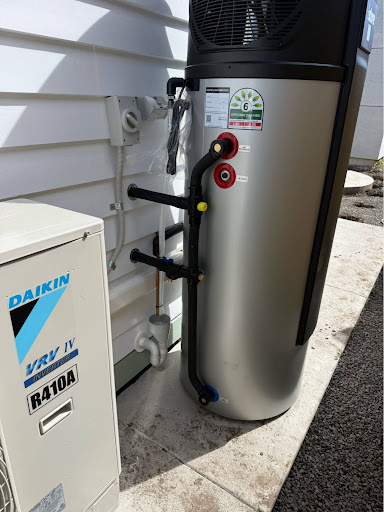

An integrated unit has the heat pump components and storage tank combined into one integrated unit that sits outside, usually near an external wall. Everything runs through one unit, which can make installation more straightforward because there are no separate heat pump and tank components to position around the property.
Noise placement is another consideration. With the heat pump components and tank located together, operating sound is concentrated in one location, which is worth considering if the unit will sit near a bedroom window or neighbouring property.
Split System Heat Pumps
A split system separates the heat pump unit from the storage tank, allowing the components to be positioned in different locations depending on the system design and installation requirements. Depending on the system and property, this can provide greater flexibility when positioning the components and may help keep operating noise further from living or sleeping areas.
Split system heat pumps can involve additional installation requirements because the components need to be positioned and connected separately. The final installation requirements and cost will depend on the selected system and property.
What to Consider Before Installing in a Preston Home
Property Layout and Noise Placement
Preston’s mix of older weatherboard homes and newer townhouses on smaller blocks means system placement can be an important consideration.
On a tight block where the available external space is near a bedroom or shared fence, a split system heat pump may offer more flexibility in positioning the heat pump unit. On a larger block with more suitable outdoor space, an integrated configuration may be a practical option.
Adequate airflow around the heat pump unit is also important. The installation location needs enough ventilation for the system to draw heat from the surrounding air and operate efficiently, so positioning should consider clearance and airflow as well as available space and noise.
Cold-Weather Performance and Reheating Time
Heat pumps can continue operating in Melbourne’s cooler conditions, but outdoor temperature can affect performance and reheating time. When the surrounding air is colder, the system has less ambient heat available to transfer into the water.
This makes correct system selection and sizing particularly important. The unit needs to suit the local conditions as well as the household’s typical hot water demand, so there is enough stored hot water available while the system reheats.
Existing Hot Water Setup
The hot water system you’re replacing can also affect the installation requirements and overall cost. Replacing an existing electric storage system may be relatively straightforward where the existing plumbing, electrical supply and installation location are suitable for the new heat pump.
Replacing a gas system may involve additional work, such as safely disconnecting the existing gas supply and making any plumbing or electrical changes required for the new system.
Heat Pump Installation Cost
Heat pump installation costs in Preston can vary considerably from one property to another. The final cost depends on factors such as the selected system, existing hot water setup, electrical and plumbing requirements, unit location and any additional work required at the property.
Site access also matters. Restricted access, tight side passages or more complex installation locations may increase the labour involved, while clear ground-level access can make installation more straightforward.
Upfront installation cost is only one part of the budget. Ongoing running costs can also differ between systems depending on factors such as the model’s efficiency, household hot water use, electricity tariffs and how the system is configured and operated.
Sizing for Your Household
A system that is too small for the household’s hot water demand may struggle to provide sufficient hot water during periods of heavier use.
That’s why sizing should consider household size, the number of bathrooms and typical hot water use rather than headcount alone.
Recovery time should also be considered, particularly during colder weather or when several people need hot water within a short period.
Victorian Heat Pump Rebates and Incentives
Victorian households may be eligible for rebates or incentives when replacing an existing hot water system with an approved heat pump system. Programs such as the Solar Homes hot water rebate and Victorian Energy Upgrades can help reduce eligible upfront costs.
Eligibility depends on factors including the property, existing hot water system, selected product and program requirements. Because these requirements and available incentives can change, check the current Solar Victoria hot water rebate eligibility requirements before choosing a system or proceeding with installation.
If you’re comparing heat pump hot water options for a specific Preston property, the right configuration depends on where the unit can go and what it’s replacing, not on price alone.
Looking for a heat pump hot water system in Preston? Expert Plumbing & Gas Services installs and services integrated and split heat pump systems and can assess your property before recommending a suitable configuration. Contact us for a quote tailored to your home.
FAQs
What is the difference between an integrated and split heat pump hot water system?
A: An integrated system combines the heat pump components and water tank in one unit, while a split system heat pump separates the heat pump unit from the storage tank. The best configuration depends on the property layout, available space, installation requirements and where the system can be positioned.
How much does heat pump installation cost in Preston?
Heat pump installation cost varies depending on the system, existing hot water setup, property access and whether electrical, plumbing or other installation work is required. A site assessment can provide a more accurate quote for your property.
Can a heat pump replace an existing gas hot water system?
A heat pump may be able to replace an existing gas hot water system, but the installation requirements will depend on the property and existing connections. A licensed plumber can assess the existing system and determine what work may be required before installation.
What size heat pump hot water system do I need?
The appropriate size depends on factors such as household size, typical hot water use and peak demand. Choosing sufficient storage and recovery capacity helps ensure the system can meet the household’s normal hot water needs.
